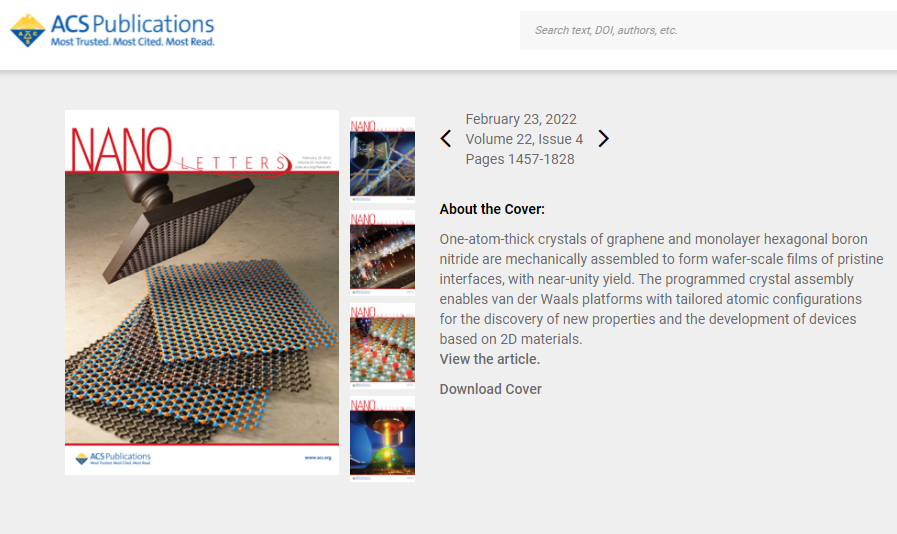

February 23, 2022

Volume 22, Issue 4

Pages 1457-1828

Wafer-Scale Programmed Assembly of One-Atom-Thick Crystals

Crystalline films offer various physical properties based on the modulation of their thicknesses and atomic structures. The layer-by-layer assembly of atomically thin crystals provides a powerful means to arbitrarily design films at the atomic level, which are unattainable with existing growth technologies. However, atomically clean assembly of the materials with high scalability and reproducibility remains challenging. We report programmed crystal assembly of graphene and monolayer hexagonal boron nitride, assisted by van der Waals interactions, to form wafer-scale films of pristine interfaces with near-unity yield. The atomic configurations of the films are tailored with layer-resolved compositions and in-plane crystalline orientations. We demonstrate batch-fabricated tunnel device arrays with modulation of the resistance over orders of magnitude by thickness control of the hexagonal boron nitride barrier with single-atom precision and large-scale, twisted multilayer graphene with programmable electronic band structures and crystal symmetries. Our results constitute an important development in the artificial design of large-scale films.

  • Seong-Jun Yang
  • Ju-Hyun Jung
  • Eunsook Lee
  • Edmund Han
  • Min-Yeong Choi
  • Daesung Jung
  • Shinyoung Choi
  • Jun-Ho Park
  • Dongseok Oh
  • Siwoo Noh
  • Ki-Jeong Kim
  • Pinshane Y. Huang
  • Chan-Cuk Hwang
  • Cheol-Joo Kim

Nano Letters | Vol 22, No 4 (

Image created by minjeong Kim / Nanosphere
